Product Detail

Model No.: RG59 Cable

Production Capacity: 8000 Km/month

Delivery Date: 10-15 Days

Specification: FPE

Certificate: Quality Management System

Means of Transport: FOB,CIF,CNF

Packing: Carton,Roll,Wooden plate

Brand Name: Wu Yue

Function: CATV,CCTV,MATV,Satellite TV

Export Area: Developing countries

Inner Conductor, FPE, Al-Foil, Braiding wires, Jacket PVC

Coaxial Cable (RG59)

1) The reference standard.

0.81mmBC(or TC,CCS,CCA) + 3.66mmFoamed PE + Al-foil shield(bonded) + 60% AL Braiding + 6.1mmPVC

2)The details of note.

a) Center conductor: Tinned Copper, Bare Copper, Copper Clad Steel, and Copper Clad Aluminum are available;

b) Al-foil: Non-bonded Al-foil, bonded Al-foil, double non-bonded Al-foil, and double bonded Al-foil are available;

c) Braiding wire: Al-Ma alloy, Bare Copper, Tinned Copper, Copper Clad Steel, Copper Clad Aluminum,Tinned Copper Clad Steel, Tinned Copper Clad Aluminum are available;

d) Braiding wire diameter: 0.10mm,0.12mm,0.13mm,0.14mm,0.15mm,0.16mm are available;

e) Braiding net: 32,48,64,72,80,96,120,128,144 and more available;

f) Braiding coverage: Between 30%--97% ara available;

g) PVC jacket of Flame retardant, UV, or UL available.

3) According to the requirments of customers, we can also offer the following materials.

a) Jelly between the Braiding and PVC jacket.

b) Steel Messenger

c) Plus2 Wires

d) Composite cable include LAN cable,Telephone cable,etc(e.g. UTP-Cat-5e-4pair).

Electrical Characteristics

Impedance: 75±3Ω

Velocity of Propagation: 85%

Capacitance: 52 pF/m

Return Loss: 20 dB

Attenuation [@68°F,(20°C)] dB/100meters

1MHz: 1.90db 700MHz: 21.52db

10MHz: 2.92db 900MHz: 24.53db

50MHz: 5.94db 1000MHz: 25.94db

100MHz: 8.13db 1200MHz: 28.60db

200MHz: 11.25db 1450MHz: 31.65db

400MHz: 16.01db 1800MHz: 35.56db

Attention:

According to the requirments of customers,we can also offer the other Electrical Characteristics.

Packing(Mainly according to the requirments of customers):

A. General Packing lengths: 30,100,200,305m/roll,100,200,300yard/roll.

B. General packing: Wooden reel,Carton box,pull out box,pallet,etc. are available.

Welcome clients’ practical specifications.

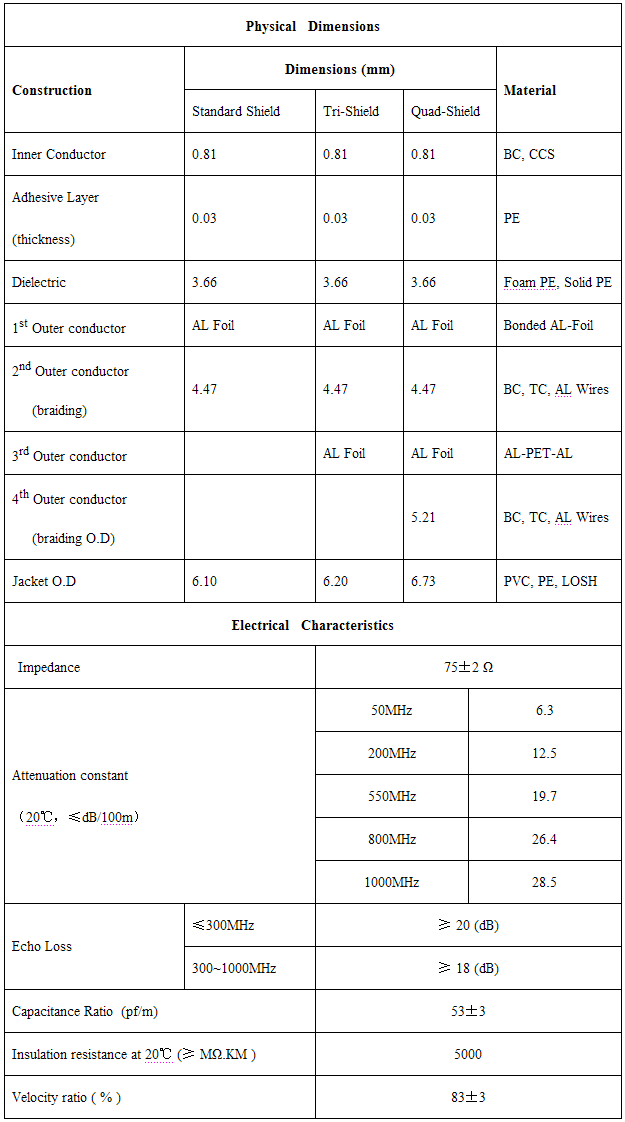

Another Reference Chart as follows
